Gummipuffer-Silentblock – Zylindrische Gummipuffer – HR
Durch die Härtetoleranzen der Elastomere können die mechanischen Eigenschaften dieser Serie Unterschiede aufweisen.

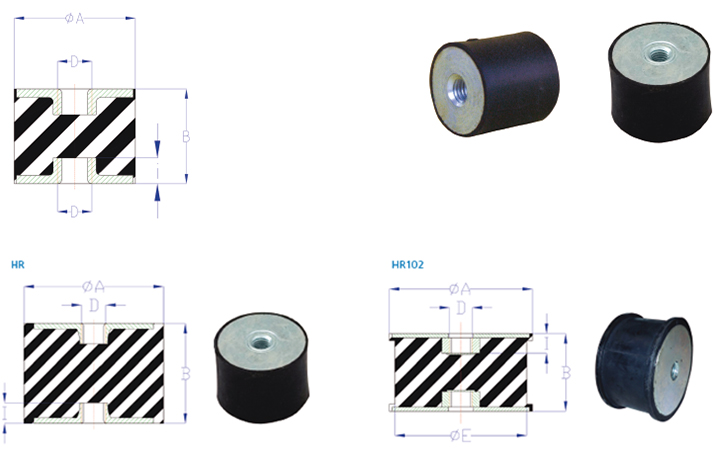

Die zylindrischen Puffer bestehen aus zwei parallel angebrachten Metallplatten, zwischen die das Gummiteil geklebt ist, und zwei Innengewinden.
Für die Herstellung dieser Teile werden hochwertige Naturgummimischungen benutzt und es sollte jeglicher Kontakt mit Kohlenwasserstoffen vermieden werden.
| REF / ART.NR | ABMESSUNGEN | DRUCKBELASTUNG | SCHERKRAFT | FEDERKENNLINIE FüR DIE AUSWAHL | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sh | ØA | B | D | I | LAST | FEDERWEG | LAST | FEDERWEG | ||||
| mm. | kg. | mm. | kg. | mm. | ||||||||
| HR | HR1615 | 60 | 16 | 15 | M-05 | 5 | 15 | 2,5±0,5 | 2 | 2,0±0,5 |  | |
| HR1620 | 60 | 16 | 20 | M-05 | 5 | 15 | 3,5±0,5 | 2 | 4,0±0,5 | |||
| HR1625 | 60 | 16 | 25 | M-05 | 5 | 15 | 4,5±1,0 | 2 | 5,0±1,0 | |||
| HR2015 | 60 | 20 | 15 | M-06 | 5 | 40 | 2,0±0,5 | 3,5 | 3,0±0,5 | | ||
| HR2020 | 60 | 20 | 20 | M-06 | 5 | 30 | 4,0±1,0 | 2,5 | 4,0±0,5 | |||
| HR2025 | 60 | 20 | 25 | M-06 | 5 | 30 | 5,0±1,0 | 2,5 | 5,0±1,0 | |||
| HR2030 | 60 | 20 | 30 | M-06 | 5 | 25 | 6,0±1,0 | 2,5 | 6,0±1,0 | |||
| HR2520 | 50 | 25 | 20 | M-08 | 6 | 50 | 4,0±0,5 | 8 | 4,0±0,5 | | ||
| HR2525 | 50 | 25 | 25 | M-08 | 6 | 45 | 5,0±1,0 | 6 | 5,0±1,0 | |||
| HR2530 | 50 | 25 | 30 | M-08 | 6 | 40 | 6,0±1,0 | 5 | 6,0±1,0 | |||
| HR2540 | 50 | 25 | 40 | M-08 | 6 | 40 | 8,0±1,0 | 5 | 8,0±1,0 | |||
| HR2822 | 50 | 28 | 22 | M-08 | 6 | 60 | 4,5±1,0 | 11 | 5,0±1,0 | | ||
| HR3020 | 50 | 30 | 20 | M-08 | 6 | 80 | 4,0±0,5 | 11 | 4,0±0,5 | |||
| HR3030 | 50 | 30 | 30 | M-08 | 6 | 60 | 6,0±1,0 | 11 | 6,0±1,0 | |||
| HR3330 | 60 | 30 | 30 | M-08 | 6 | 80 | 6,0±1,0 | 16 | 6,0±1,0 | |||
| HR3040 | 50 | 30 | 40 | M-08 | 6 | 60 | 8,0±1,0 | 11 | 8,0±1,0 | |||
| HR4020 | 50 | 40 | 20 | M-10 | 7 | 175 | 4,0±0,5 | 20 | 4,0±0,5 | | ||
| HR4028M8 | 50 | 40 | 28 | M-08 | 6 | 125 | 5,5±1,0 | 16 | 5,5±1,0 | |||
| HR4028 | 50 | 40 | 28 | M-10 | 7 | 125 | 5,5±1,0 | 16 | 5,5±1,0 | |||
| HR3430 | 60 | 40 | 30 | M-08 | 6 | 200 | 6,0±1,0 | 40 | 6,0±1,0 | |||
| HR4035 | 50 | 40 | 35 | M-10 | 7 | 100 | 7,0±1,0 | 16 | 7,0±1,0 | |||
| HR4040M8 | 50 | 40 | 40 | M-08 | 6 | 100 | 8,0±1,0 | 16 | 8,0±1,0 | |||
| HR4040 | 50 | 40 | 40 | M-10 | 7 | 100 | 8,0±1,0 | 16 | 8,0±1,0 | |||
| HR4045M8 | 50 | 40 | 45 | M-08 | 6 | 100 | 9,0±1,0 | 16 | 9,0±1,0 | |||
| HR4045 | 50 | 40 | 45 | M-10 | 7 | 100 | 9,0±1,0 | 16 | 9,0±1,0 | |||
| HR5020 | 50 | 50 | 20 | M-10 | 7 | 300 | 4,0±0,5 | 25 | 4,0±0,5 | | ||
| HR5025 | 50 | 50 | 25 | M-10 | 7 | 175 | 5,0±1,0 | 25 | 5,0±1,0 | |||
| HR5030 | 50 | 50 | 30 | M-10 | 7 | 160 | 6,0±1,0 | 25 | 6,0±1,0 | |||
| HR5035 | 50 | 50 | 35 | M-10 | 7 | 160 | 7,0±1,0 | 25 | 7,0±1,0 | |||
| HR5040 | 50 | 50 | 40 | M-10 | 7 | 155 | 8,0±1,0 | 25 | 8,0±1,0 | |||
| HR5045 | 50 | 50 | 45 | M-10 | 7 | 150 | 9,0±1,0 | 25 | 9,0±1,0 | |||
| HR5060 | 50 | 50 | 60 | M-10 | 7 | 130 | 12,0±1,5 | 25 | 12,0±1,5 | |||
| HR6025 | 50 | 60 | 25 | M-10 | 7 | 400 | 5,0±1,0 | 35 | 5,0±1,0 | | ||
| HR6035 | 50 | 60 | 35 | M-10 | 7 | 300 | 7,0±1,0 | 35 | 7,0±1,0 | |||
| HR6045 | 50 | 60 | 45 | M-10 | 7 | 250 | 9,0±1,0 | 35 | 9,0±1,0 | |||
| HR6060 | 50 | 60 | 60 | M-10 | 7 | 225 | 12,0±1,5 | 35 | 11,0±1,5 | |||
| HR7035M10 | 50 | 70 | 35 | M-10 | 9 | 450 | 7,0±1,0 | 55 | 7,0±1,0 | | ||
| HR7040M10 | 50 | 70 | 40 | M-10 | 9 | 400 | 8,0±1,0 | 70 | 8,0±1,0 | |||
| HR7050M10 | 50 | 70 | 50 | M-10 | 9 | 300 | 10,0±1,0 | 35 | 10,0±1,0 | |||
| HR7070M10 | 50 | 70 | 70 | M-10 | 9 | 300 | 14,0±1,5 | 35 | 14,0±1,5 | |||
| HR7035 | 50 | 70 | 35 | M-12 | 10 | 450 | 7,0±1,0 | 55 | 7,0±1,0 | |||
| HR7040 | 50 | 70 | 40 | M-12 | 10 | 400 | 8,0±1,0 | 70 | 8,0±1,0 | |||
| HR7050 | 50 | 70 | 50 | M-12 | 10 | 300 | 10,0±1,0 | 35 | 10,0±1,0 | |||
| HR7070 | 50 | 70 | 70 | M-12 | 10 | 300 | 14,0±1,5 | 35 | 14,0±1,5 | |||
| HR8030 | 50 | 80 | 30 | M-14 | 9 | 950 | 6,0±1,0 | 100 | 6,0±1,0 | | ||
| HR8040 | 50 | 80 | 40 | M-14 | 9 | 600 | 8,0±1,0 | 80 | 8,0±1,0 | |||
| HR8055 | 50 | 80 | 55 | M-14 | 9 | 500 | 11,0±1,5 | 70 | 11,0±1,5 | |||
| HR9540 | 50 | 95 | 40 | M-16 | 14 | 1000 | 8,0±1,0 | 140 | 8,0±1,0 | |||
| HR102 | HR102D45 | 45 | 102 | 55 | M-16 | 14 | 500 | 11,0±1,5 | 100 | 11,0±1,5 | | |
| HR102D60 | 60 | 102 | 55 | M-16 | 14 | 1000 | 11,0±1,5 | 200 | 11,0±1,5 | |||
| HR102D75 | 75 | 102 | 55 | M-16 | 14 | 2500 | 11,0±1,5 | 350 | 11,0±1,5 | |||
| HR | HR15075 | 50 | 150 | 75 | M-20 | 20 | 1800 | 15,0±2,0 | 275 | 15,0±2,0 | | |
